GXF 示例




%YAML 1.2
---
# other entities declared
---

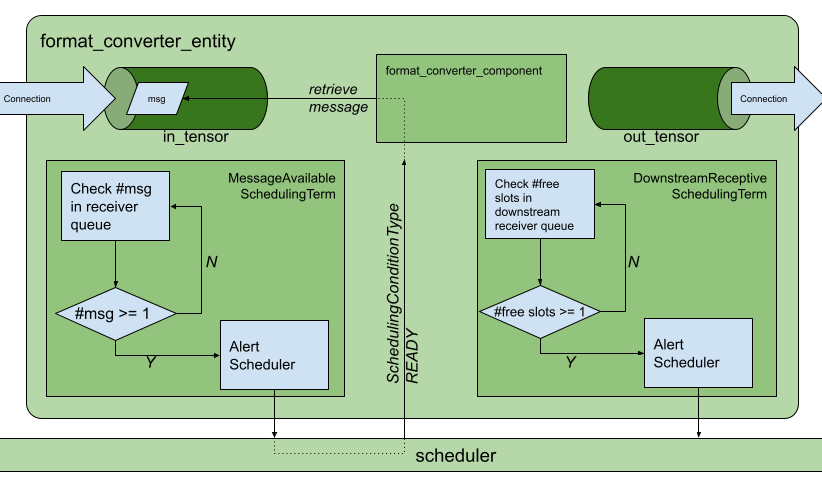

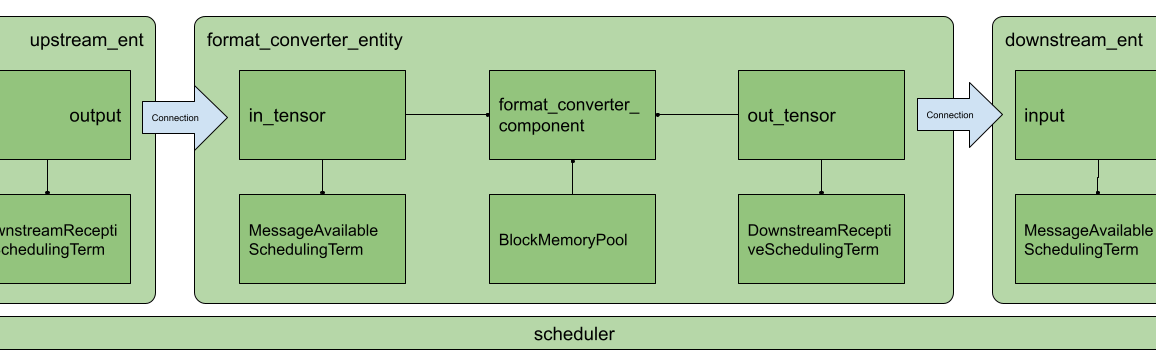

name: format_converter_entity
components:
  - name: in_tensor
    type: nvidia::gxf::DoubleBufferReceiver
  - type: nvidia::gxf::MessageAvailableSchedulingTerm
    parameters:
      receiver: in_tensor
      min_size: 1
  - name: out_tensor
    type: nvidia::gxf::DoubleBufferTransmitter
  - type: nvidia::gxf::DownstreamReceptiveSchedulingTerm
    parameters:
      transmitter: out_tensor
      min_size: 1
  - name: pool
    type: nvidia::gxf::BlockMemoryPool
    parameters:
      storage_type: 1
      block_size: 4919040 # 854 * 480 * 3 (channel) * 4 (bytes per pixel)
      num_blocks: 2
  - name: format_converter_component
    type: nvidia::holoscan::formatconverter::FormatConverter
    parameters:
      in: in_tensor
      out: out_tensor
      out_tensor_name: source_video
      out_dtype: "float32"
      scale_min: 0.0
      scale_max: 255.0
      pool: pool
---
# other entities declared
---
components:
  - name: input_connection
    type: nvidia::gxf::Connection
    parameters:
      source: upstream_entity/output
      target: format_converter/in_tensor
---
components:
  - name: output_connection
    type: nvidia::gxf::Connection
    parameters:
      source: format_converter/out_tensor
      target: downstream_entity/input
---
name: scheduler
components:
  - type: nvidia::gxf::GreedyScheduler





  - type: nvidia::gxf::MessageAvailableSchedulingTerm
    parameters:
      receiver: in_tensor
      min_size: 1





  - type: nvidia::gxf::DownstreamReceptiveSchedulingTerm
    parameters:
      transmitter: out_tensor
      min_size: 1





#include <string>

#include "gxf/core/handle.hpp"
#include "gxf/std/codelet.hpp"
#include "gxf/std/receiver.hpp"
#include "gxf/std/transmitter.hpp"
#include "gxf/serialization/file_stream.hpp"
#include "gxf/serialization/entity_serializer.hpp"

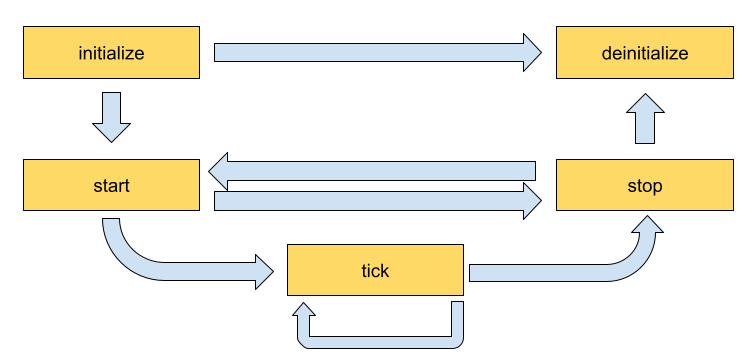

class MyRecorder : public nvidia::gxf::Codelet {
 public:
  gxf_result_t registerInterface(nvidia::gxf::Registrar* registrar) override;
  gxf_result_t initialize() override;
  gxf_result_t deinitialize() override;

  gxf_result_t start() override;
  gxf_result_t tick() override;
  gxf_result_t stop() override;

 private:
  nvidia::gxf::Parameter<nvidia::gxf::Handle<nvidia::gxf::Receiver>> receiver_;
  nvidia::gxf::Parameter<nvidia::gxf::Handle<nvidia::gxf::EntitySerializer>> my_serializer_;
  nvidia::gxf::Parameter<std::string> directory_;
  nvidia::gxf::Parameter<std::string> basename_;
  nvidia::gxf::Parameter<bool> flush_on_tick_;

  // File stream for data index
  nvidia::gxf::FileStream index_file_stream_;
  // File stream for binary data
  nvidia::gxf::FileStream binary_file_stream_;
  // Offset into binary file
  size_t binary_file_offset_;
};





#include "my_recorder.hpp"

gxf_result_t MyRecorder::registerInterface(nvidia::gxf::Registrar* registrar) {
  nvidia::gxf::Expected<void> result;
  result &= registrar->parameter(
      receiver_, "receiver", "Entity receiver",
      "Receiver channel to log");
  result &= registrar->parameter(
      my_serializer_, "serializer", "Entity serializer",
      "Serializer for serializing input data");
  result &= registrar->parameter(
      directory_, "out_directory", "Output directory path",
      "Directory path to store received output");
  result &= registrar->parameter(
      basename_, "basename", "File base name",
      "User specified file name without extension",
      nvidia::gxf::Registrar::NoDefaultParameter(), GXF_PARAMETER_FLAGS_OPTIONAL);
  result &= registrar->parameter(
      flush_on_tick_, "flush_on_tick", "Boolean to flush on tick",
      "Flushes output buffer on every `tick` when true", false);  // default value `false`
  return nvidia::gxf::ToResultCode(result);
}





name: my_recorder_entity
components:
  - name: my_recorder_component
    type: MyRecorder
    parameters:
      receiver: receiver
      serializer: my_serializer
      out_directory: /home/user/out_path
      basename: my_output_file  # optional
      # flush_on_tick: false # optional





gxf_result_t MyRecorder::initialize() {
  // Create path by appending receiver name to directory path if basename is not provided
  std::string path = directory_.get() + '/';
  if (const auto& basename = basename_.try_get()) {
    path += basename.value();
  } else {
    path += receiver_->name();
  }

  // Initialize index file stream as write-only
  index_file_stream_ = nvidia::gxf::FileStream("", path + nvidia::gxf::FileStream::kIndexFileExtension);

  // Initialize binary file stream as write-only
  binary_file_stream_ = nvidia::gxf::FileStream("", path + nvidia::gxf::FileStream::kBinaryFileExtension);

  // Open index file stream
  nvidia::gxf::Expected<void> result = index_file_stream_.open();
  if (!result) {
    return nvidia::gxf::ToResultCode(result);
  }

  // Open binary file stream
  result = binary_file_stream_.open();
  if (!result) {
    return nvidia::gxf::ToResultCode(result);
  }
  binary_file_offset_ = 0;

  return GXF_SUCCESS;
}





gxf_result_t MyRecorder::deinitialize() {
  // Close binary file stream
  nvidia::gxf::Expected<void> result = binary_file_stream_.close();
  if (!result) {
    return nvidia::gxf::ToResultCode(result);
  }

  // Close index file stream
  result = index_file_stream_.close();
  if (!result) {
    return nvidia::gxf::ToResultCode(result);
  }

  return GXF_SUCCESS;
}





gxf_result_t MyRecorder::start() {
  return GXF_SUCCESS;
}

gxf_result_t MyRecorder::stop() {
  return GXF_SUCCESS;
}





gxf_result_t MyRecorder::tick() {
  // Receive entity
  nvidia::gxf::Expected<nvidia::gxf::Entity> entity = receiver_->receive();
  if (!entity) {
    return nvidia::gxf::ToResultCode(entity);
  }

  // Write entity to binary file
  nvidia::gxf::Expected<size_t> size = my_serializer_->serializeEntity(entity.value(), &binary_file_stream_);
  if (!size) {
    return nvidia::gxf::ToResultCode(size);
  }

  // Create entity index
  nvidia::gxf::EntityIndex index;
  index.log_time = std::chrono::system_clock::now().time_since_epoch().count();
  index.data_size = size.value();
  index.data_offset = binary_file_offset_;

  // Write entity index to index file
  nvidia::gxf::Expected<size_t> result = index_file_stream_.writeTrivialType(&index);
  if (!result) {
    return nvidia::gxf::ToResultCode(result);
  }
  binary_file_offset_ += size.value();

  if (flush_on_tick_) {
    // Flush binary file output stream
    nvidia::gxf::Expected<void> result = binary_file_stream_.flush();
    if (!result) {
      return nvidia::gxf::ToResultCode(result);
    }

    // Flush index file output stream
    result = index_file_stream_.flush();
    if (!result) {
      return nvidia::gxf::ToResultCode(result);
    }
  }

  return GXF_SUCCESS;
}





#include "gxf/std/extension_factory_helper.hpp"

#include "my_recorder.hpp"

GXF_EXT_FACTORY_BEGIN()
GXF_EXT_FACTORY_SET_INFO(0xb891cef3ce754825, 0x9dd3dcac9bbd8483, "MyRecorderExtension",
                         "My example recorder extension", "NVIDIA", "0.1.0", "LICENSE");
GXF_EXT_FACTORY_ADD(0x2464fabf91b34ccf, 0xb554977fa22096bd, MyRecorder,
                    nvidia::gxf::Codelet, "My example recorder codelet.");
GXF_EXT_FACTORY_END()





# Create library
add_library(my_recorder_lib SHARED
  my_recorder.cpp
  my_recorder.hpp
)
target_link_libraries(my_recorder_lib
  PUBLIC
    GXF::std
    GXF::serialization
    yaml-cpp
)

# Create extension
add_library(my_recorder SHARED
  my_recorder_ext.cpp
)
target_link_libraries(my_recorder
  PUBLIC my_recorder_lib
)

# Install GXF extension as a component 'holoscan-gxf_extensions'
install_gxf_extension(my_recorder) # this will also install my_recorder_lib
# install_gxf_extension(my_recorder_lib) # this statement is not necessary because this library follows `<extension library name>_lib` convention.





add_subdirectory(my_recorder)





%YAML 1.2
---
name: replayer
components:
  - name: output
    type: nvidia::gxf::DoubleBufferTransmitter
  - name: allocator
    type: nvidia::gxf::UnboundedAllocator
  - name: component_serializer
    type: nvidia::gxf::StdComponentSerializer
    parameters:
      allocator: allocator
  - name: entity_serializer
    type: nvidia::holoscan::stream_playback::VideoStreamSerializer   # inheriting from nvidia::gxf::EntitySerializer
    parameters:
      component_serializers: [component_serializer]
  - type: nvidia::holoscan::stream_playback::VideoStreamReplayer
    parameters:
      transmitter: output
      entity_serializer: entity_serializer
      boolean_scheduling_term: boolean_scheduling
      directory: "/workspace/data/racerx"
      basename: "racerx"
      frame_rate: 0       # as specified in timestamps
      repeat: false       # default: false
      realtime: true      # default: true
      count: 0            # default: 0 (no frame count restriction)
  - name: boolean_scheduling
    type: nvidia::gxf::BooleanSchedulingTerm
  - type: nvidia::gxf::DownstreamReceptiveSchedulingTerm
    parameters:
      transmitter: output
      min_size: 1
---
name: recorder
components:
 - name: input
   type: nvidia::gxf::DoubleBufferReceiver
 - name: allocator
   type: nvidia::gxf::UnboundedAllocator
 - name: component_serializer
   type: nvidia::gxf::StdComponentSerializer
   parameters:
     allocator: allocator
 - name: entity_serializer
   type: nvidia::holoscan::stream_playback::VideoStreamSerializer   # inheriting from nvidia::gxf::EntitySerializer
   parameters:
     component_serializers: [component_serializer]
 - type: MyRecorder
   parameters:
     receiver: input
     serializer: entity_serializer
     out_directory: "/tmp"
     basename: "tensor_out"
 - type: nvidia::gxf::MessageAvailableSchedulingTerm
   parameters:
     receiver: input
     min_size: 1
---
components:
  - name: input_connection
    type: nvidia::gxf::Connection
    parameters:
      source: replayer/output
      target: recorder/input
---
name: scheduler
components:
  - name: clock
    type: nvidia::gxf::RealtimeClock
  - name: greedy_scheduler
    type: nvidia::gxf::GreedyScheduler
    parameters:
      clock: clock





- name: entity_serializer
  type: nvidia::holoscan::stream_playback::VideoStreamSerializer   # inheriting from nvidia::gxf::EntitySerializer
  parameters:
    component_serializers: [component_serializer]





- type: MyRecorder
  parameters:
    receiver: input
    serializer: entity_serializer
    directory: "/tmp"
    basename: "tensor_out"





create_gxe_application(
  NAME my_recorder_gxf
  YAML my_recorder_gxf.yaml
  EXTENSIONS
    GXF::std
    GXF::cuda
    GXF::multimedia
    GXF::serialization
    my_recorder
    stream_playback
)

# Download the associated dataset if needed
if(HOLOSCAN_DOWNLOAD_DATASETS)
  add_dependencies(my_recorder_gxf racerx_data)
endif()





add_subdirectory(my_recorder_app_gxf)





@LINUX:/workspace/holoscan-sdk/build$ ls -al /tmp/
total 821384
drwxrwxrwt 1 root root      4096 Aug 24 04:37 .
drwxr-xr-x 1 root root      4096 Aug 24 04:36 ..
drwxrwxrwt 2 root root      4096 Aug 11 21:42 .X11-unix
-rw-r--r-- 1 1000 1000    729309 Aug 24 04:47 gxf_log
-rw-r--r-- 1 1000 1000 840054484 Aug 24 04:47 tensor_out.gxf_entities
-rw-r--r-- 1 1000 1000     16392 Aug 24 04:47 tensor_out.gxf_index

@LINUX:/workspace/holoscan-sdk/build$ ls -al ../data/racerx
total 839116
drwxr-xr-x 2 1000 1000      4096 Aug 24 02:08 .
drwxr-xr-x 4 1000 1000      4096 Aug 24 02:07 ..
-rw-r--r-- 1 1000 1000  19164125 Jun 17 16:31 racerx-medium.mp4
-rw-r--r-- 1 1000 1000 840054484 Jun 17 16:31 racerx.gxf_entities
-rw-r--r-- 1 1000 1000     16392 Jun 17 16:31 racerx.gxf_index
